PSF Network (Neural Surrogate)

Script: 3_psf_net.py

Represent a lens's spatially-varying PSF with a neural network (PSFNetLens). The surrogate predicts the RGB PSF at any (fov, depth, focus distance), accelerating PSF evaluation versus ray tracing. From Aberration-Aware Depth-from-Focus (IEEE TPAMI 2023).

What it demonstrates

  • Wrapping a GeoLens with an MLP-based PSF predictor.
  • Comparing the network-predicted PSF map against the ray-traced PSF map.
  • Loading a pretrained checkpoint (and training from scratch with train_psfnet).

Run

# Download the pretrained model from the releases page first:
#   https://github.com/vccimaging/DeepLens/releases/
python 3_psf_net.py

Key code

from deeplens import PSFNetLens

psfnet_lens = PSFNetLens(
    in_chan=3, psf_chan=3,
    lens_path="./datasets/lenses/camera/ef50mm_f1.8.json",
    model_name="mlpconv", kernel_size=128,
)
psfnet_lens.load_net("./ckpts/psfnet/PSFNet_ef50mm_f1.8_ps10um.pth")

psfnet_lens.refocus(-1200)
psfnet_lens.draw_psf_map(save_name="./psf_map_net.png", grid=(11, 11), depth=-1500)
psfnet_lens.lens.draw_psf_map(save_name="./psf_map_lens.png", grid=(11, 11), depth=-1500)

# Train from scratch:
# psfnet_lens.train_psfnet(iters=10000, bs=128, lr=5e-5, result_dir=result_dir)

Results

Network-predicted vs ray-traced PSF maps (these are drawn from the pretrained checkpoint, before any training):

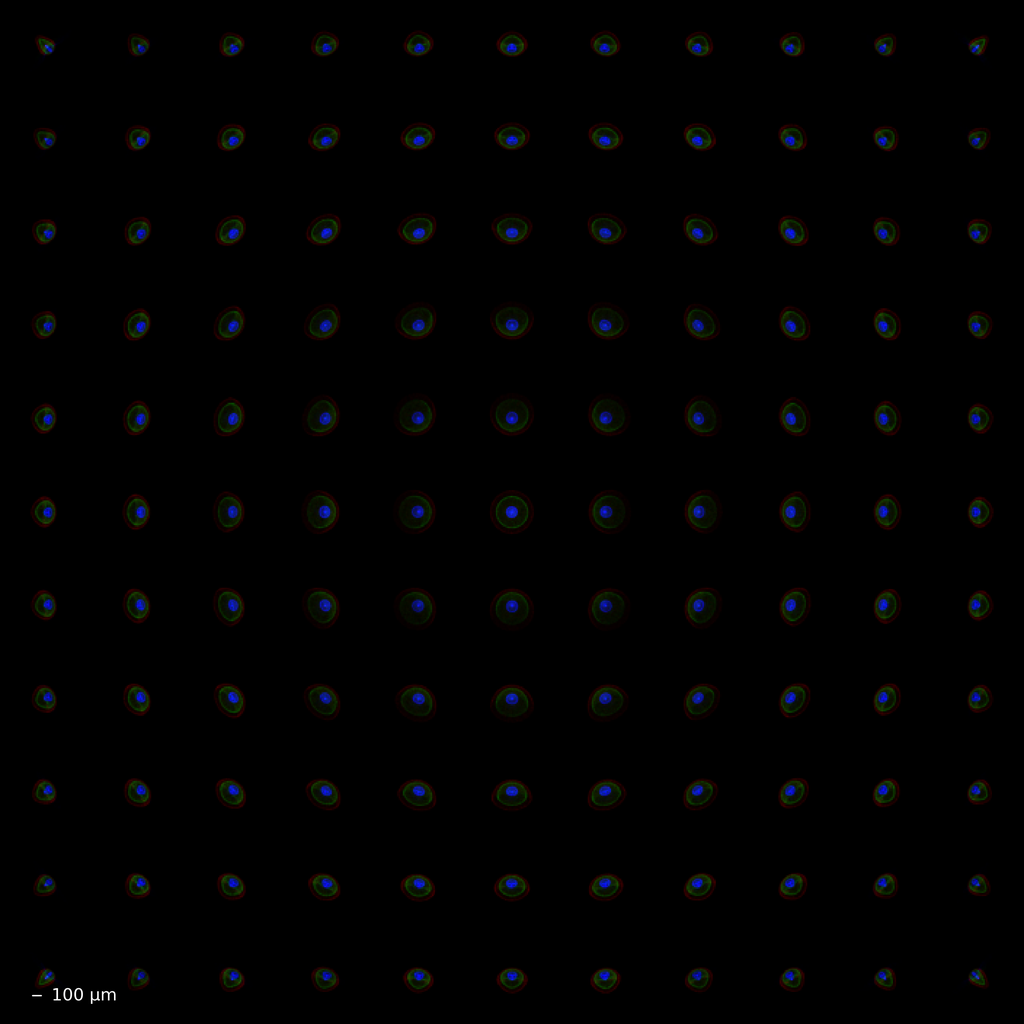

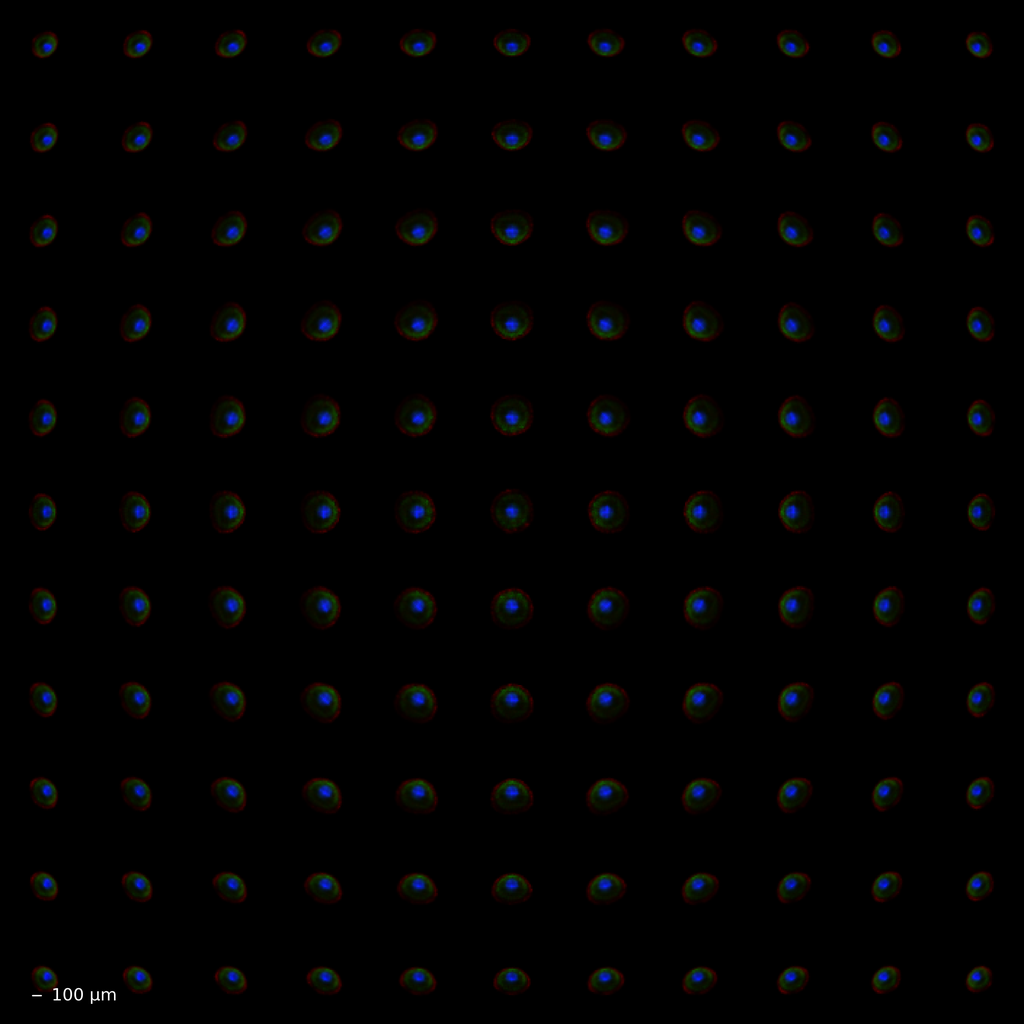

PSF map — network PSF map — ray tracing
net lens

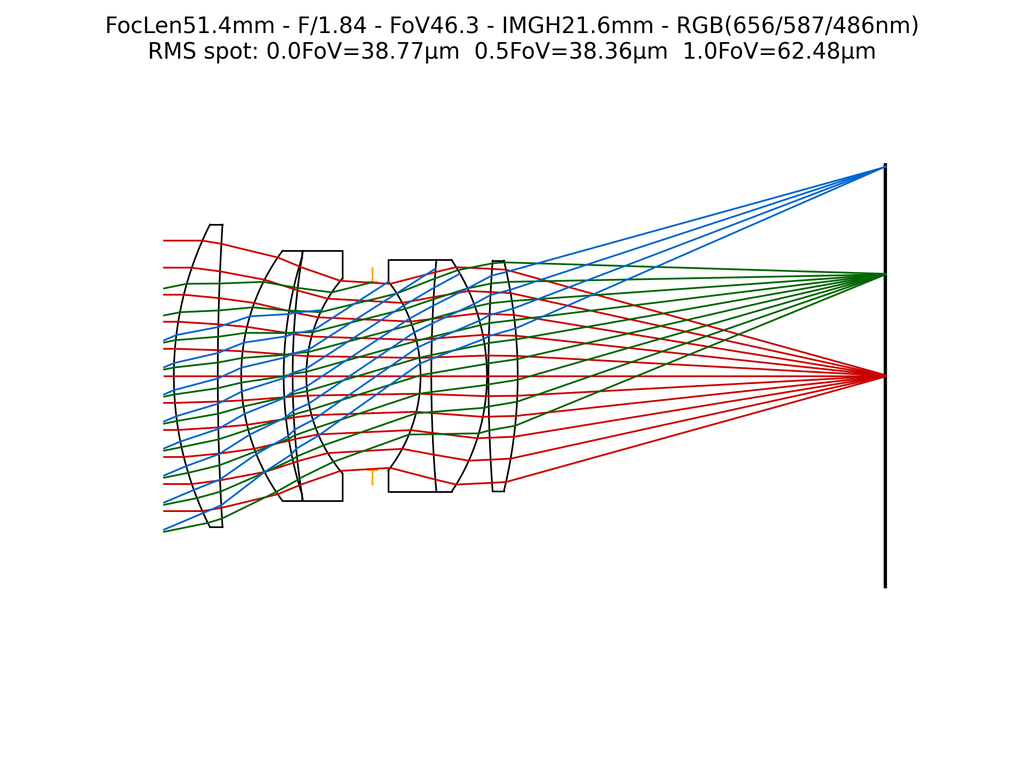

Underlying lens

Lens analysis
