HybridLens Design

Script: 1_design_hybridlens.py

End-to-end design of a hybrid refractive–diffractive lens with the differentiable ray–wave model: optimize the DOE phase (and optionally the refractive surfaces) against an imaging objective.

What it demonstrates

• Building a HybridLens and optimizing its DOE with the ray–wave PSF.
• Periodic analysis snapshots (layout, DOE phase, PSF) during the design loop.

Run

python 1_design_hybridlens.py

Key code

import torch
from deeplens import HybridLens

lens = HybridLens(filename="./datasets/lenses/hybridlens/a489_doe.json",
                  dtype=torch.float64)

iterations = 1000
for i in range(iterations + 1):
    # ... compute ray-wave PSF, imaging loss, backprop, optimizer step ...
    if i % save_every == 0:
        lens.write_lens_json(f"{result_dir}/lens_iter{i}.json")
        lens.analysis(save_name=f"{result_dir}/lens_iter{i}.png")

Results

Snapshots at the start of the design loop (the optimization itself is skipped in this documentation run):

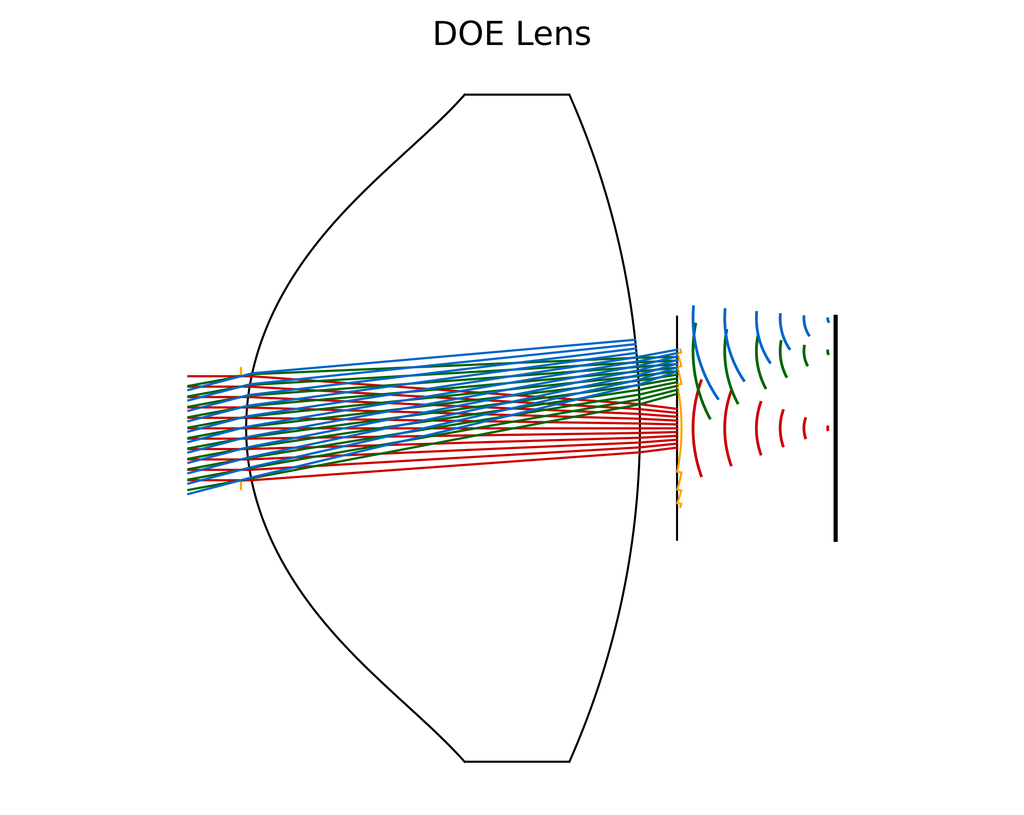

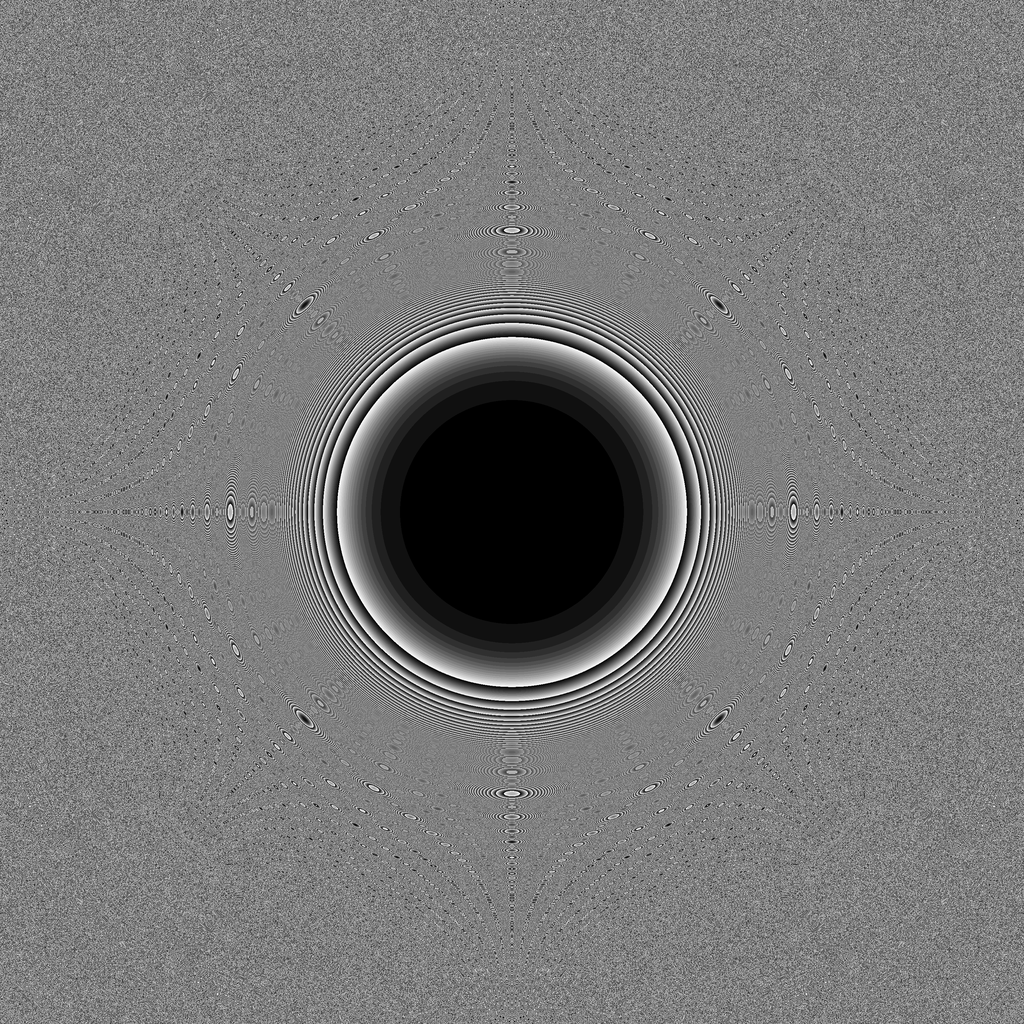

Layout	DOE phase	PSF
