Hello HybridLens

Script: 0_hello_hybridlens.py

A hybrid refractive–diffractive lens: coherent ray tracing computes the complex wavefront at the DOE plane (capturing all geometric aberrations), the DOE phase modulates it, and ASM propagation carries it to the sensor. Runs in float64.

What it demonstrates

  • Loading a HybridLens from a JSON file that contains both refractive surfaces and a DOE block.
  • The coherent ray-trace → DOE modulation → ASM propagation pipeline.
  • Rendering an image through the hybrid system.

Run

python 0_hello_hybridlens.py

Key code

import torch
torch.set_default_dtype(torch.float64)  # required for accurate phase tracing
from deeplens import HybridLens

lens = HybridLens(filename="./datasets/lenses/hybridlens/a489_doe.json")
lens.draw_layout(save_name="./hello_hybridlens_layout.png")

# Coherent ray tracing + DOE modulation + ASM propagation
psf = lens.psf(points=[0.0, 0.0, -10000.0], wvln=0.589, spp=1_000_000)
img_render = lens.render(img, depth=-10000.0)

print(f"Focal length: {lens.geolens.foclen:.2f} mm")  # refractive part via .geolens

Results

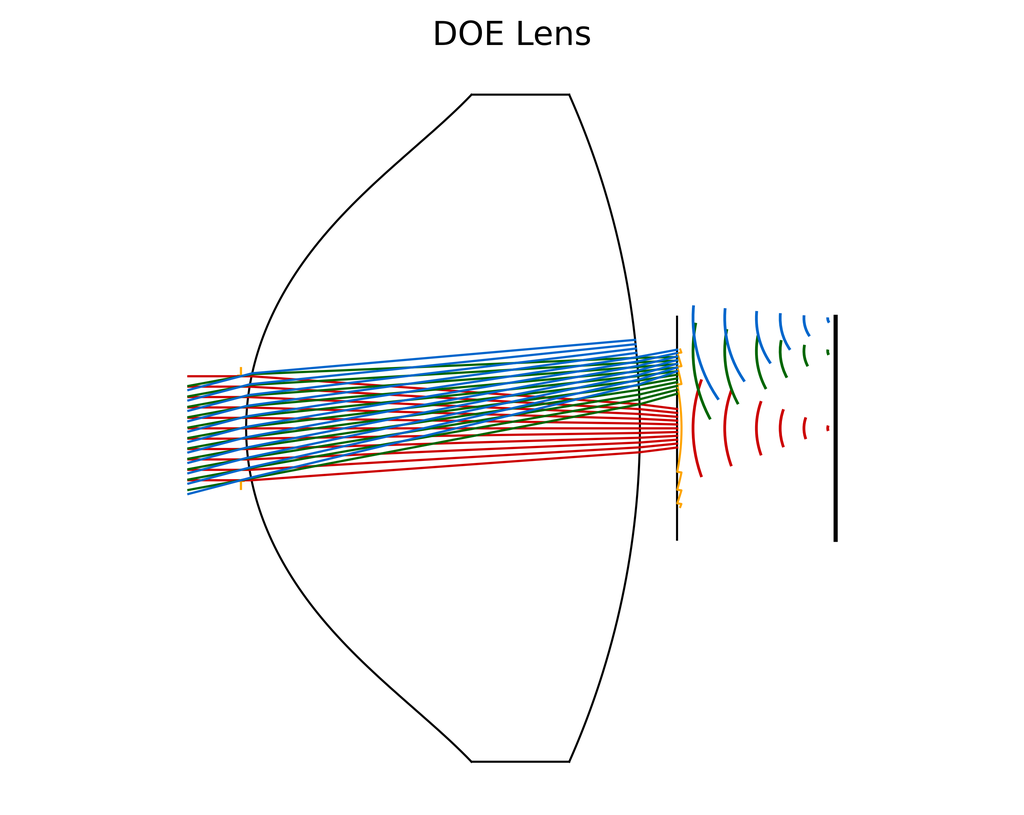

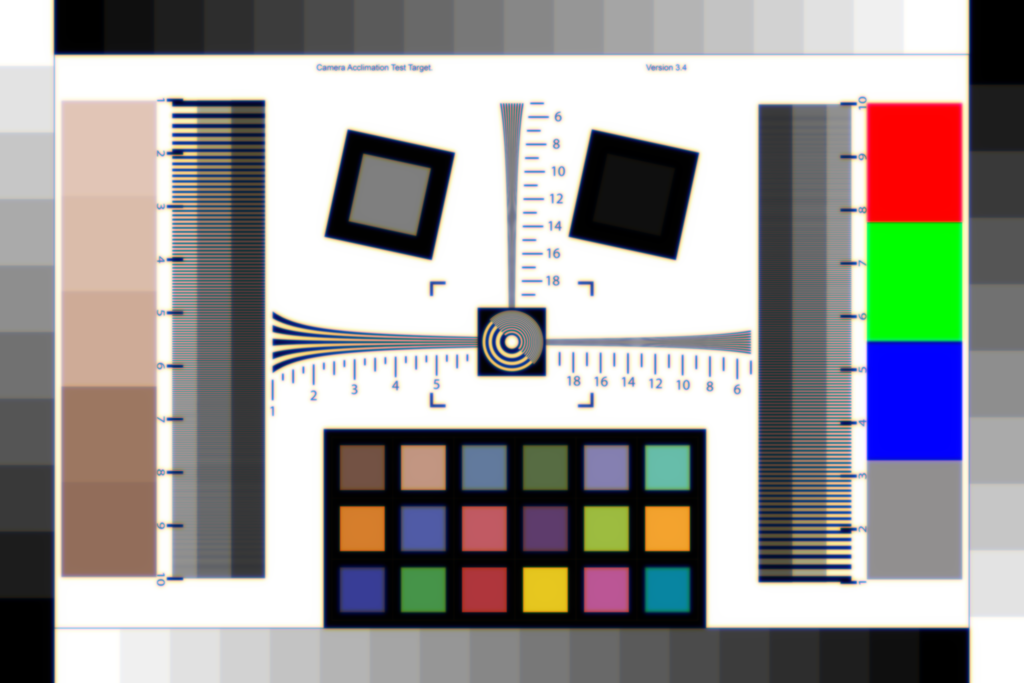

Lens layout Rendered image
Layout Render
