4f System

Script: 4f_system.py

A 4f optical system relays the input plane to the sensor through two Fourier-transforming lenses. A diffractive surface at the shared Fourier (spatial-frequency) plane acts as a frequency-domain filter, so the system PSF is the inverse Fourier transform of that mask.

input(z=-f) --f--> ThinLens(f) --f--> Fresnel DOE --f--> ThinLens(f) --f--> sensor

What it demonstrates

  • Building a 4f system with a DOE at the Fourier plane.
  • Computing the on-axis PSF with the DOE active vs neutralized (plain 4f relay), so the filter's effect is directly visible.

Run

python 4f_system.py

Key code

from deeplens import DiffractiveLens
from deeplens.light import ComplexWave

lens = DiffractiveLens(filename="./datasets/lenses/diffraclens/4f_doe.json", device=device)
lens.draw_layout(save_name=f"{save_dir}/4f_layout.png")

# Point at the front focal plane -> forward through the 4f system -> sensor PSF
inp = ComplexWave.point_wave(point=[0, 0, -f], ...)
psf = (lens.forward(inp).u.abs() ** 2)

Results

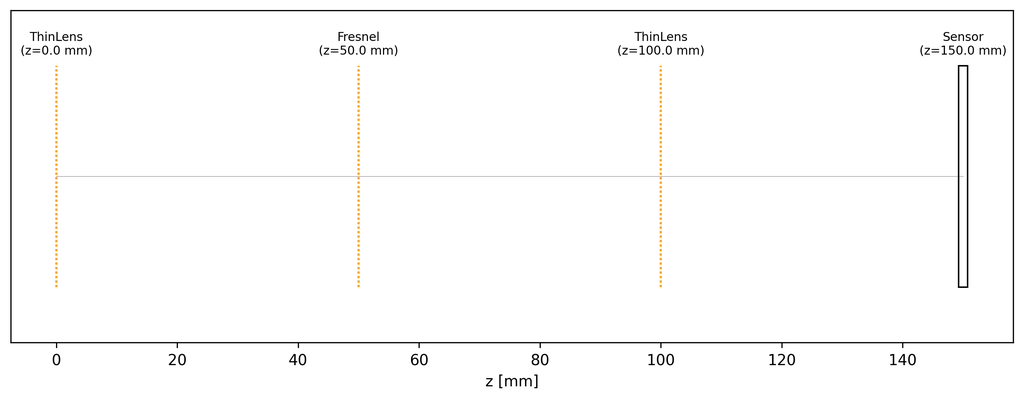

Layout

Layout

PSF: plain 4f relay vs Fourier-plane DOE

Baseline (no filter) With Fourier-plane DOE
baseline doe
