Diffractive Surfaces

Script: 9_diffractive_surfaces.py

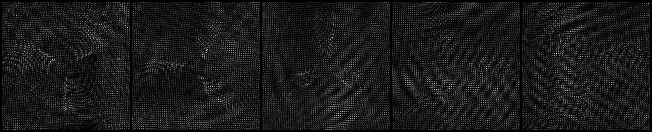

Demonstrates three paper-based diffractive surface parameterizations. For each, the script saves the design-wavelength phase map and the resulting PSF.

What it demonstrates

Rank1 (Sun et al., CVPR 2020): a low-rank height map h = h_max · sigmoid(V @ Qᵀ); a saddle initialization gives an anisotropic, streak-like PSF.

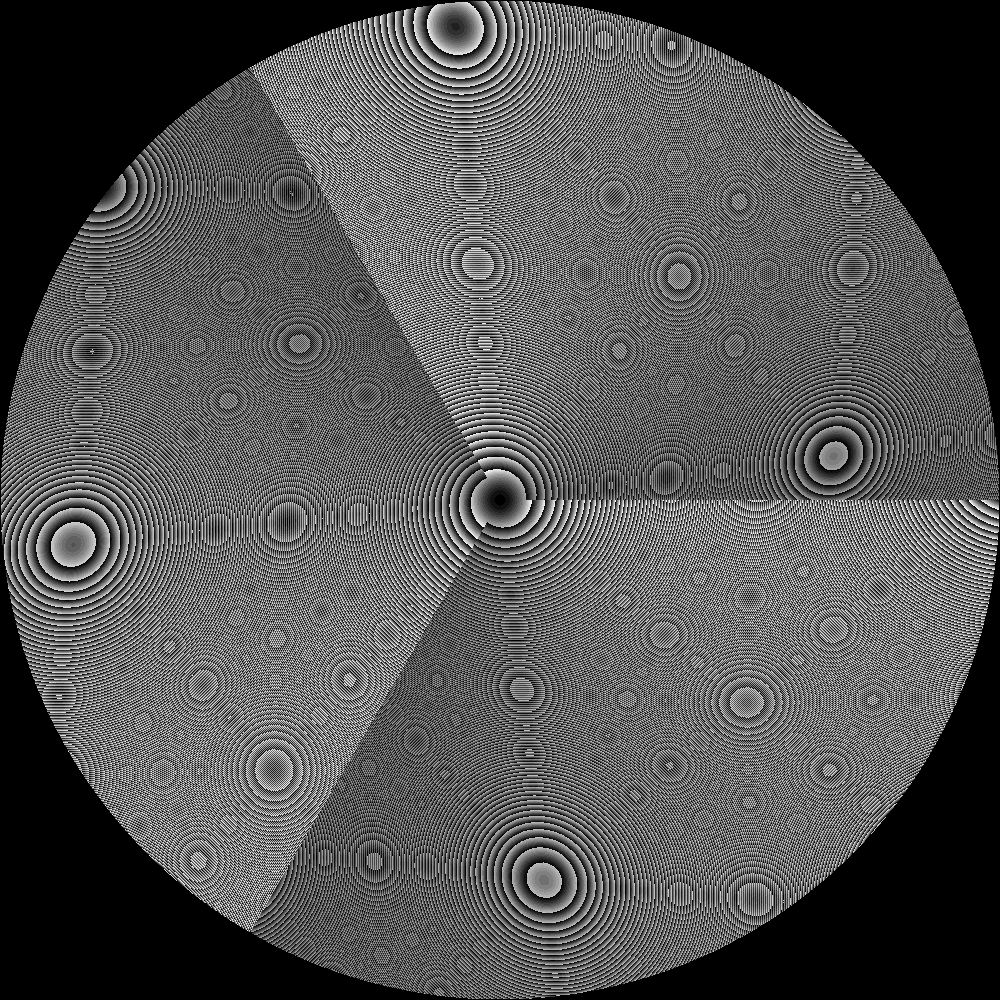

DiffractedRotation (Jeon et al., TOG 2019): per-angle blazed Fresnel sectors forming an N-fold "spiral" phase map.

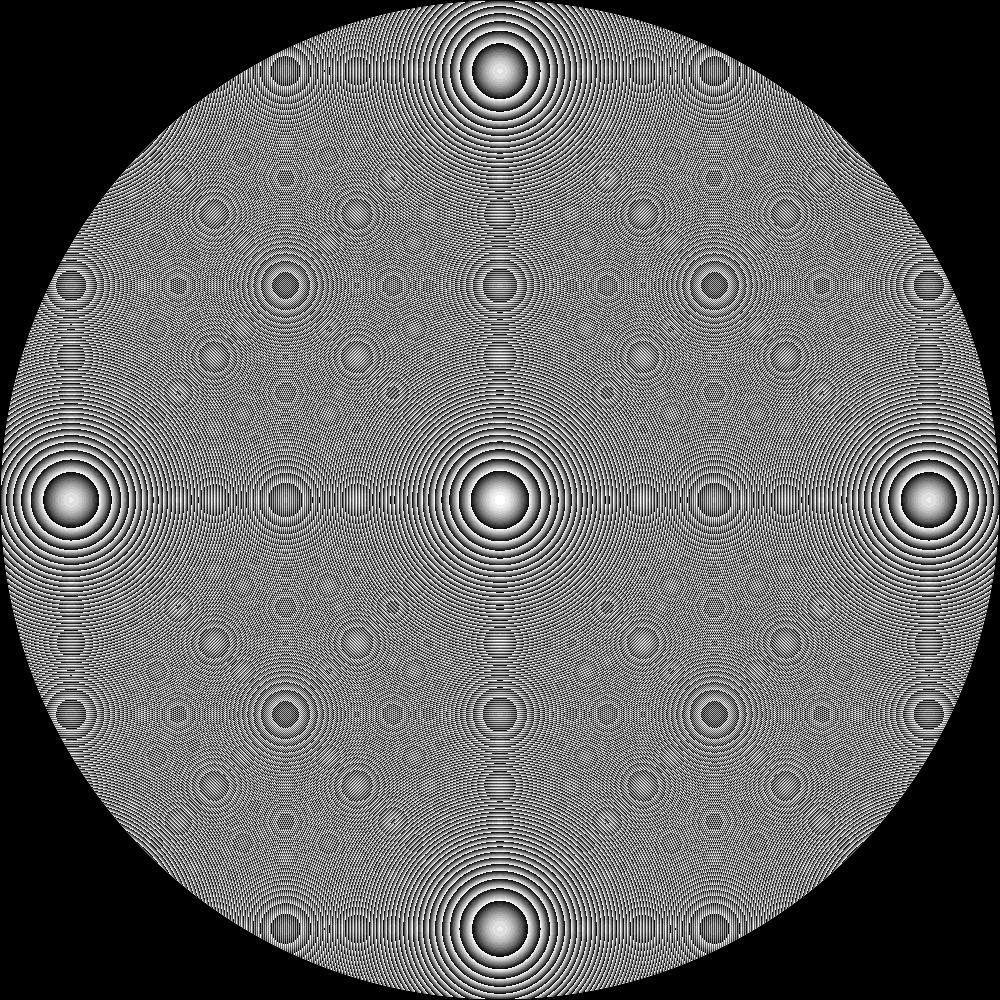

RotationallySymmetric (Dun et al., Optica 2020): a free-form 1-D radial profile.

Run

python 9_diffractive_surfaces.py

Key code

from deeplens import DiffractiveLens

for cfg in ["rank1.json", "diffracted_rotation.json", "rotational_symmetric.json"]:
    doe = DiffractiveLens(filename=f"./datasets/lenses/diffraclens/{cfg}", device=DEVICE)
    doe.surfaces[0].draw_phase_map(save_name=...)   # design-wavelength phase
    psf = doe.psf(points=[0.0, 0.0, float("-inf")]) # PSF
